Smoke Dampers

Smoke dampers are UL555S tested and labeled, low leak damper and actuator assemblies constructed to restrict the spread of smoke in HVAC systems that are designed to be automatically shut down in the event of a fire, or opened to control the movement of smoke within a building when the HVAC system is part of an engineered smoke control system.

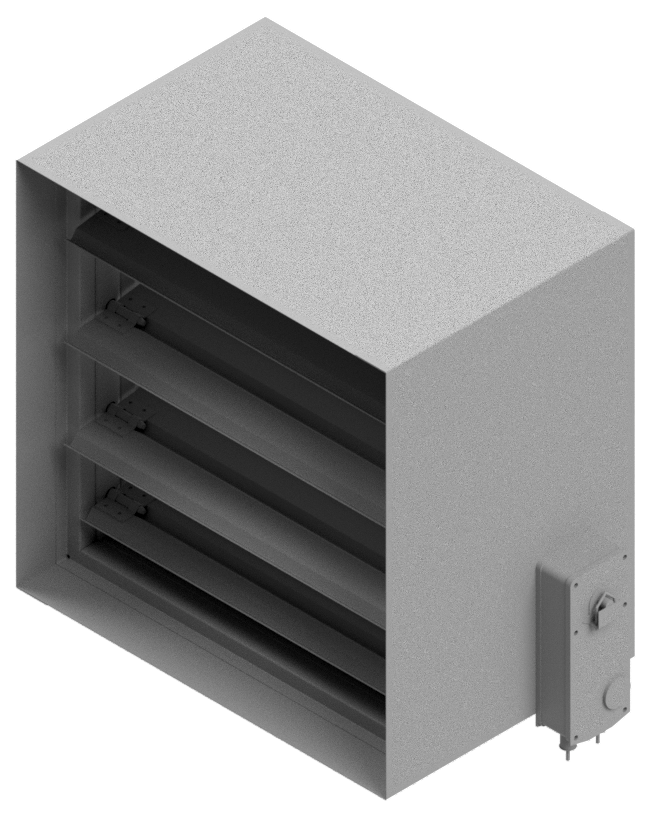

S-3V-I

3V Class I Low Leakage Smoke Damper
3V Class I Low Leakage Smoke Damper

Product Overview

Model S-3V-I is an ultra-low UL555S Leakage Class 1 rated smoke damper used in ducts that penetrate smoke rated barriers.

  • UL555S File #R25410, ULC S112.1
  • Rated to 2,000 fpm and 4" w.g.
  • With factory furnished actuator, provides fail-safe operation (the damper automatically goes to the desired fail-safe position when fire interrupts power.)
  • Available with factory furnished sleeves.
