Combination Fire/Smoke Dampers

Combination Fire/Smoke dampers are low leak damper and actuator assemblies that have passed the UL555 and UL555S test requirements.

F/S-AF-OW-II

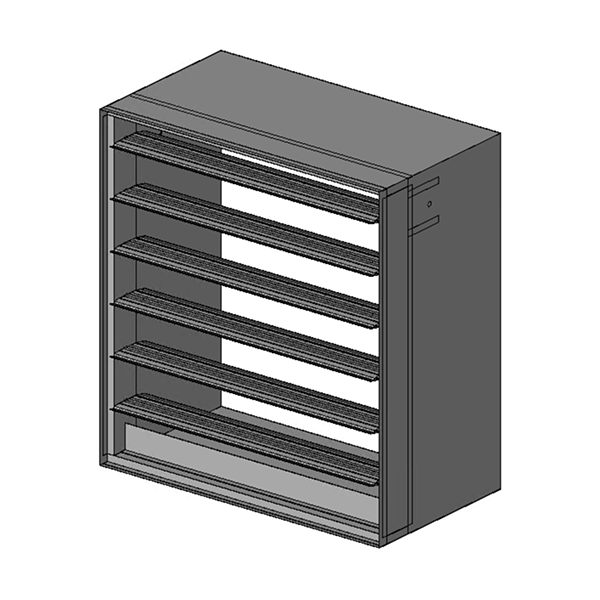

Out of wall, combination fire/smoke damper, Airfoil blade, Class II

Out of wall, combination fire/smoke damper, Airfoil blade, Class II

Application

Model: F/S-AF-OW II Air Foil Blade UL/ULC qualified for mounting outside of the plane of the wall for either Grille Access (GA) or when the damper cannot be installed within the plane of the Wall/Floor “OW” installation. U.L.555S U.L.C S112.1 rating shall be class II with leakage not to exceed 20 cfm per sq. ft. at 4.0 inches static pressure.

Product Information

Submittal

F/S-AF-OW-II Submittal

TD FS Sleeve Dimensional Data 0124

TD FS Act Space Envelope 0124

Installation Instructions

F/S Out Of Wall Installation Instructions

Out Of Wall Installation Instructions

Electric Fuse Link EFL Inst. Supplement

Electrical Components and Wiring Diagrams

EFL/MTS Spec Sheet

DTO/R-MTS Spec Sheet

Micro Switch M/S Spec

Remote Control Boxes RCB Spec

Pneumatic Fuse Link PFL Inst. Supplement

Double Thermostat Override Release DTO/R Inst. Supplement

Pneumatic Thermostat Operator Release STO/R Inst. Supplement

Operation & Maintenance

Life Safety O & M

Revit® File

F/S-AF-OW-I & F/S-AF-OW- II Revit File

Misc

Momentary Test Switch MTS Spec

F/S Typical Actuator Mount Locations

Retaining Angles Installation Supplement

Shaft Wall Installation Supplement

Optional Sealant of F/S Dampers Inst. Supplement

Smoke Detectors

Smoke Detector Mounting Detail

APC SL2000 Smoke Detector Installation

APC HS 100 Smoke Detector Installation

APC SL2000 Duct Smoke Detector Spec

APC SM 501 Smoke Detector Installation

APC HS 100 Duct Smoke Detector Spec

APC SM 501 Duct Smoke Detector Spec
