Metal Building roof curbs are frame (usually constructed using aluminum alloy or galvanized steel with wood) used to secure mechanical equipment such as HVAC units, skylights, AC units, and fans.

UMB-2

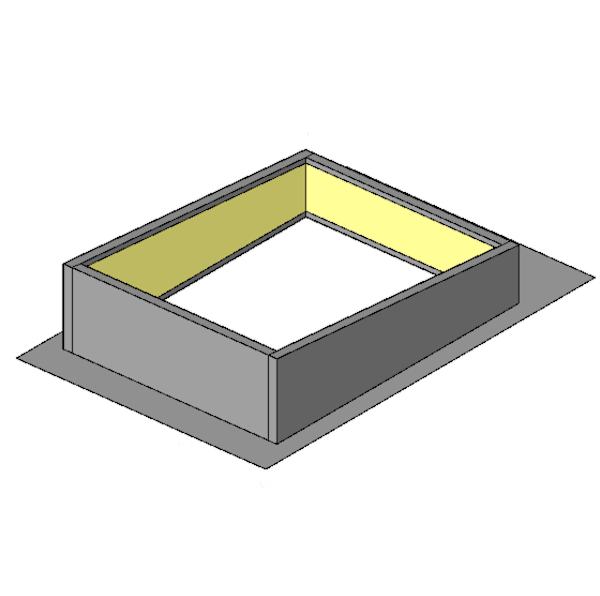

One Piece Curb with Loose Rib Closures - Use with R & SSR panels

Application

Model UMB-2 is a one-piece curb with 18ga. Galvalume steel shell and baseplate; 8 minimum height

Product Information

Submittal

UMB 2 Submittal

Installation Instructions

UMB 2 Installation over roof

UMB 2 Installation under roof

Revit® File

UMB 2 Revit File

Misc

METAL BUILDING ROOF CURB APP 1 Misc.
