Adjustable Louvers

Louvers are typically installed in exterior walls openings and provide ventilation while protecting against water intrusion.

AFL-D-4

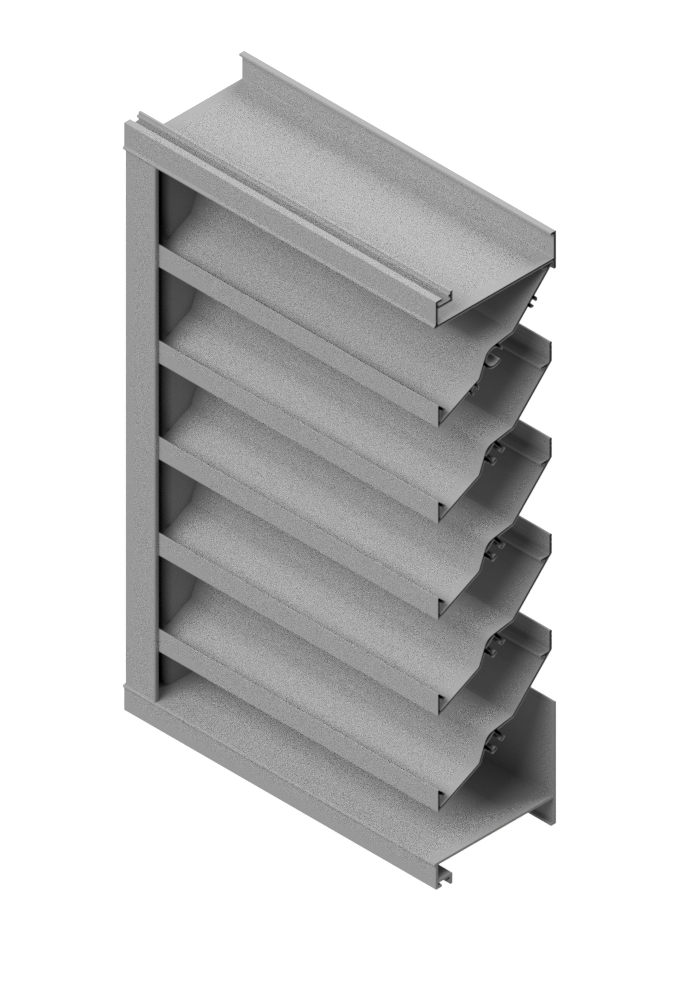

Drainable Adjustable Louver 4" Deep
Drainable Adjustable Louver 4" Deep

Product Overview

Model AFL-D-4 is a high-performance extruded aluminum adjustable drainable louver. The Model AFL-D-4 can be used for exhaust or intake air.

  • AMCA Certified Air Performance and Water Penetration
  • Design Wind Load: 30 PSF
  • Free Area: 48%
  • Point of Water Penetration: 1217 FPM
  • Pressure Drop @ Water Penetration: 0.12" w.g.
  • Frame Depth: 4.25"
  • Blade Angle: 30°
  • Max Single Section: 60" x 96"
