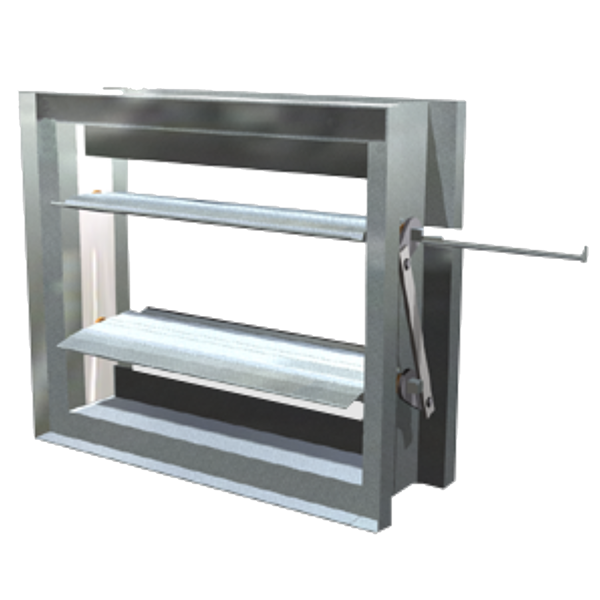

Model CD-170 (Opposed Blade) or CD-171 (Parallel Blade) are ultra-low leakage AMCA Class I, Airfoil Blade, 18 Gauge Channel Frame Galvanized Steel Frame Control Dampers.

Galvanized Steel Frame
6” Aluminum Air Foil Blade
Nylon Bearings
PVC Blade Seals
Stainless Steel Jamb Seals
Optional Factory install actuators
