Barometric Damper vs Backdraft Damper: How to Choose the Right HVAC Control
Dampers can look similar on a schedule even when they solve very different airflow problems. One relieves excess pressure; another prevents unwanted reverse flow through a duct or opening. Choosing between a barometric damper vs backdraft damper starts with identifying the condition the system needs the damper to respond to.
How Dampers Control Airflow
A damper stops, directs, regulates, or relieves airflow within HVAC equipment and duct systems. Damper design determines how the device responds to airflow and pressure, so the word “damper” alone does not describe how it will operate. A backdraft damper is one specific type designed primarily to allow airflow in the intended direction and resist airflow in the opposite direction.
Pressure relief, balancing, and airflow regulation can require different damper types, so selection should begin with the required system function.
What a Barometric Relief Damper Does
A barometric relief damper typically provides a passive path for excess air when a pressure differential reaches the damper's opening condition. The blades or panels respond to the pressure acting across the damper rather than relying on a conventional control signal for normal operation. As the pressure condition changes, the damper opens or returns toward its closed position according to its design and adjustment.
Barometric Relief in HVAC Systems
In HVAC applications, a barometric relief damper provides a controlled relief path from a building, room, plenum, or air-handling system. Its purpose is pressure relief rather than routine airflow balancing. Balancing and regulating dampers are used instead when the goal is to adjust or equalize airflow within the system.
The term “relief damper” can overlap with backdraft terminology because some commercial dampers are designed to provide both pressure-responsive relief and reverse-flow resistance. A barometric relief damper vs backdraft damper comparison should therefore focus on the intended function and opening condition rather than assuming the product categories are always completely separate.
Other Uses of “Barometric Damper”
The phrase “barometric damper” also appears in oil-fired furnace and boiler applications, where the device is commonly called a draft regulator. It is used in the flue or vent connector to control chimney draft. That differs from the HVAC pressure-relief and reverse-airflow devices discussed here.
A barometric bypass damper is another separate application used in some zoned HVAC systems to provide a bypass path as supply-system pressure rises. It should not automatically be treated as another name for a barometric relief damper.

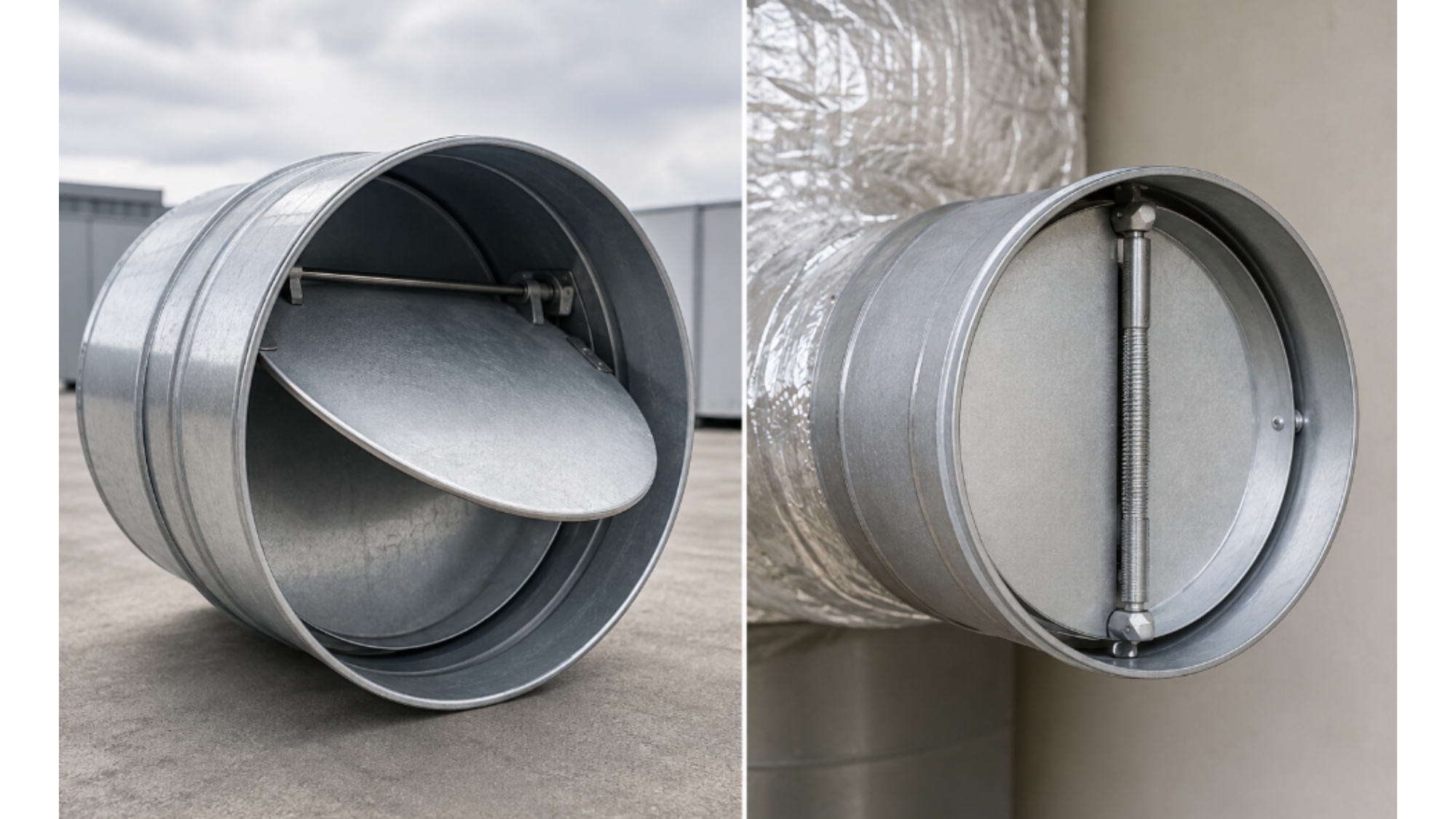

What a Backdraft Damper Does
A backdraft damper allows airflow in the intended direction and limits or prevents airflow from moving back through the opening when conditions reverse. In a passive design, forward airflow creates the force needed to open the blades, and the blades return toward the closed position when airflow stops or reverses. This one-way operation suits exhaust, intake, ventilation, and fan-system applications.
Depending on the application, backdraft damper operation may use gravity, spring assistance, or actuation. Gravity-operated designs are one reason the term gravity damper is often associated with backdraft applications.
Common Backdraft Applications
Backdraft dampers are used in exhaust, intake, ventilation, and fan systems where reverse flow must be controlled. In fan-wall systems, they can also limit bypass flow through an out-of-service fan. Commercial projects can use UET's backdraft, gravity, and pressure-relief damper options, while demanding process applications may require industrial backdraft dampers.
Barometric Damper vs Backdraft Damper: Key Differences
The main difference is the operating objective: barometric relief dampers respond primarily to a pressure-relief condition, while backdraft dampers respond primarily to directional airflow and reverse-flow conditions. Some commercial products can perform overlapping relief and backdraft functions, so the application should determine the final selection. For a barometric damper vs backdraft damper selection, compare the trigger, airflow path, and required result.
A project may need pressure relief, reverse-flow protection, or both. Final configuration depends on mounting, blade operation, construction, and system conditions.
How to Choose Between Barometric and Backdraft Dampers
Damper selection begins with the airflow problem the system must solve. A barometric damper vs backdraft damper choice should then account for operating function, installation conditions, and performance requirements.
Start With the Required Function
Choose a pressure-relief approach when excess air needs a controlled path out of a building, room, plenum, or system as pressure rises. Choose a backdraft approach when the primary concern is stopping unwanted reverse airflow through an exhaust, intake, fan, or ventilation opening. If both conditions matter, evaluate a damper designed specifically for combined relief and backdraft service rather than assuming one generic product will perform both jobs.
Identify What Should Open or Close the Damper
Selection depends on the condition that should move the damper. For barometric relief, that condition is normally a pressure differential sufficient to move the damper toward its open position. For backdraft control, the important conditions include intended forward airflow, fan shutdown, reverse airflow, and pressure acting from the opposite direction.
Consider Location and Orientation
A backdraft damper belongs in the airflow path where reverse flow must be controlled, but no single position applies to every system. Duct arrangement, airflow direction, mounting orientation, access, fan configuration, and blade operation can affect selection. Manufacturer requirements should control final placement and orientation.
Match the Damper to the Application
Once function and installation conditions are defined, construction and operating features can be matched to the service conditions. A barometric damper vs backdraft damper selection should reflect the system’s actual operating objective.
United Enertech Damper Solutions
United Enertech offers damper solutions for commercial and industrial airflow, pressure-relief, and backdraft-control applications. Our team can help evaluate system function, airflow direction, mounting conditions, and operating requirements before a damper is specified. Contact us today for more information.
Frequently Asked Questions
These common questions address backdraft applications, installation, code considerations, and barometric damper terminology.
What Is a Backdraft Damper Used For?
A backdraft damper allows air to move in the intended direction while limiting or preventing reverse airflow. Common applications include exhaust systems, ventilation openings, fan systems, and other HVAC airflow paths where air should not return when a fan shuts down or pressure conditions change.
Where Should a Backdraft Damper Be Installed?
Common locations include exhaust ducts, intake or ventilation openings, and fan systems where reverse flow must be controlled. The correct location and mounting orientation depend on the duct arrangement, airflow direction, fan configuration, damper design, and manufacturer requirements.
Is a Backdraft Damper Required by Code?
Backdraft dampers are required by some codes for specific applications, but they are not universally required in every HVAC system. Check the adopted mechanical code, local amendments, equipment requirements, and the specific exhaust or ventilation application for each project.
What Is the Difference Between a Damper and a Backdraft Damper?
A damper is a broad category of HVAC device used to control, regulate, isolate, or relieve airflow. A backdraft damper is a specific type designed primarily to permit airflow in one direction and resist unwanted flow in the opposite direction.
What Is a Barometric Damper on an Oil-Fired Furnace or Boiler?
In an oil-fired furnace or boiler application, a barometric damper is typically a draft-control device installed in the appliance venting system. It regulates chimney draft and is different from the HVAC pressure-relief and backdraft-control dampers discussed elsewhere in this article.
What Is Another Name for a Barometric Damper on an Oil-Fired Appliance?
A barometric damper used with an oil-fired furnace or boiler is commonly called a draft regulator. That terminology refers to the combustion-venting application and should not be confused with an HVAC barometric relief damper.
